PID-Control (with Derivative Filter) in State Space FormatΒΆ

    from IPython.core.display import HTML
    import numpy as np

    import matplotlib.pyplot as plt
    plt.rcParams.update({
        "text.usetex": True,
        "font.family": "Helvetica",
        "font.size": 10,
    })

    from sympy import *
    from sympy.plotting import plot

    from mathprint import *

Kp, Ki, Kd = symbols('K_p K_i K_d', positive=True)

Ts, N = symbols('T_s N', positive=True)
s = symbols('s', complex=True)

E, e, U, u = symbols('E e U u')
X1, X2, x1, x2 = symbols('X_1 X_2 x_1 x_2')
x1_dot = Symbol(r'\dot{x_1}')
x2_dot = Symbol(r'\dot{x_2}')

def laplace(f):
    F = laplace_transform(f, t, s, noconds=True)
    return F

def ilaplace(F):
    f = inverse_laplace_transform(F, s, t)
    return f

def frac_to_tf(frac):
    return TransferFunction(fraction(frac)[0], fraction(frac)[1], s)

PID-control equation, \(E(s)\) is the error in a Laplace form:

P = Kp * E
I = Ki * E / s
D = Kd * N * s / (s + N) * E
U = P + I + D

mprint("U(s)= ", latex(U))
\[\displaystyle U(s)= \frac{E K_{d} N s}{N + s} + \frac{E K_{i}}{s} + E K_{p}\]

where:

  • \(K_p\) is the proportional gain

  • \(K_i\) is the integral gain

  • \(K_d\) is the derivative gain

  • \(N\) is the filter coefficient

  • \(e(t)\) or \(E(s)\) is the input to the controller, which is the error between the target and the actual output of the system

  • \(u(t)\) or \(U(s)\) is the computed control signal that will be sent to the system

U = apart(U, s)
mprint("U(s)= ", latex(U))
\[\displaystyle U(s)= - \frac{E K_{d} N^{2}}{N + s} + E K_{d} N + \frac{E K_{i}}{s} + E K_{p}\]

Define \(X_1(s)\) and \(X_2(s)\):

eq1 = Eq(X1, E/s)
mprint(latex(eq1))

eq2 = Eq(X2, N/(s+N)*E)
mprint(latex(eq2))
\[\displaystyle X_{1} = \frac{E}{s}\]
\[\displaystyle X_{2} = \frac{E N}{N + s}\]

Substitute \(X_1\) and \(X_2\) into \(U\):

U = U.subs(((eq1.rhs, eq1.lhs), (eq2.rhs, eq2.lhs)))
mprintb("U=", latex(U))

U = collect(U, [Kd, N])
mprintb("U=", latex(U))
\[\displaystyle \boxed{U=E K_{d} N + E K_{p} - K_{d} N X_{2} + K_{i} X_{1}}\]
\[\displaystyle \boxed{U=E K_{p} + K_{d} \left(E N - N X_{2}\right) + K_{i} X_{1}}\]

Next, we need to express \(\dot{x}_1\) and \(\dot{x}_2\).

Multiply both sides of \(X1\) with \(s\) and bring to time domain:

eq1 = expand(Eq(eq1.lhs*s, eq1.rhs*s))
mprint(latex(eq1))
eq1 = eq1.subs(X1*s, x1_dot).subs(E, e)
mprintb(latex(eq1))
\[\displaystyle X_{1} s = E\]
\[\displaystyle \boxed{\dot{x_1} = e}\]

Multiply both sides of \(X2\) with \(N+s\) and bring to time domain:

eq2 = expand(Eq(eq2.lhs*(s+N), eq2.rhs*(s+N)))
mprint(latex(eq2))

eq2 = eq2.subs(X2*s, x2_dot).subs(X2, x2).subs(E,e)
mprint(latex(eq2))

eq2 = Eq(x2_dot, solve(eq2, x2_dot)[0])
mprintb(latex(eq2))
\[\displaystyle N X_{2} + X_{2} s = E N\]
\[\displaystyle N x_{2} + \dot{x_2} = N e\]
\[\displaystyle \boxed{\dot{x_2} = N \left(e - x_{2}\right)}\]

Finally, substitute the state definitions into \(U\), then move from Laplace-domain variables \(\left(X_1, X_2, E\right)\) to time-domain variables \(\left(x_1, x_2, e\right)\).

u = U.subs(((eq1.rhs, eq1.lhs), (eq2.rhs, eq2.lhs))).subs(((X1, x1), (X2, x2), (E, e)))
mprintb("u(t)=", latex(u))
\[\displaystyle \boxed{u(t)=K_{d} \left(N e - N x_{2}\right) + K_{i} x_{1} + K_{p} e}\]

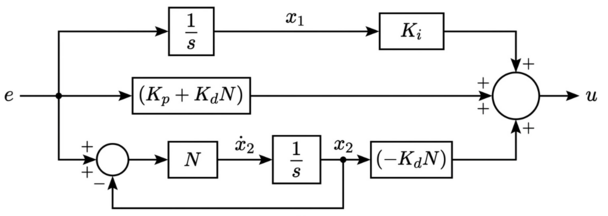

Therefore, the PID-control state space can be expressed as:

\[\boxed{\dot{x}=A x+B e, \quad u=C x+D e}\]

with:

\[\begin{split} \boxed{ A=\left[\begin{array}{cc} 0 & 0 \\ 0 & -N \end{array}\right], \quad B=\left[\begin{array}{c} 1 \\ N \end{array}\right], \quad C=\left[\begin{array}{ll} K_i & -K_d N \end{array}\right], \quad D=\left[K_p+K_d N\right]} \end{split}\]
