Second-Order System

Required imports

from IPython.core.display import HTML
import numpy as np

import matplotlib.pyplot as plt
plt.rcParams.update({
    "text.usetex": True,
    "font.family": "Helvetica",
    "font.size": 10,
})

from sympy import *
from sympy.plotting import plot

from mathprint import *

Preparations

Define variables that we are going to use repetitively: \(s, t, \tau\). We also need to define specific prpoperties of the variables.

t   = symbols('t', real=True, positive=True)
s   = symbols('s', complex=True)
tau = symbols('tau', real=True, positive=True)
omega_n = symbols('omega_n', real=True, positive=True)
zeta = symbols('zeta', real=True, positive=True)

The original laplace transformation functions are a little too long. We will simplify the laplace and the inverse laplace transformation functions, as follows.

• laplace_transform(f, t, s, noconds=True) as laplace(f)

• inverse_laplace_transform(F, s, t) as ilapalce(F)

def laplace(f):
    F = laplace_transform(f, t, s, noconds=True)
    return F

def ilaplace(F):
    f = inverse_laplace_transform(F, s, t)
    return f

Second-Order System Equation

A second-order system:

\[ G(s)=\frac{C(s)}{R(s)} = \frac{ \omega_n^2 } { s^2+2 \zeta \omega_n s + \omega_n^2 } \]

Here \(R(s)\) and \(C(s)\) are the input and output functions in \(s\)-domain, respectively. In time-domain, they become \(r(t)\) and \(c(t)\), respectively. We have two parameters:

• natural frequency at which system: \(\omega_n\)

• damping ratio is a system: \(\zeta\)

G = omega_n**2 / (s**2 + 2*zeta*omega_n*s + omega_n**2)
mprint("G=", latex(G))

\[\displaystyle G=\frac{\omega_{n}^{2}}{\omega_{n}^{2} + 2 \omega_{n} s \zeta + s^{2}}\]

Responses to a Unit-Step Input

What we do here:

• define a step function as the input function

r = Heaviside(t)
mprint('r(t)=', latex(r))

\[\displaystyle r(t)=1\]

• compute the Laplace formof the input function:

R = laplace(r)
mprint('R(s)=', latex(R))

\[\displaystyle R(s)=\frac{1}{s}\]

• apply the input to the system, obtain the output

C = G*R
mprint('C(s)=', latex(C))

\[\displaystyle C(s)=\frac{\omega_{n}^{2}}{s \left(\omega_{n}^{2} + 2 \omega_{n} s \zeta + s^{2}\right)}\]

• compute the Laplace inverse of the output

c = ratsimp(ilaplace(C))
mprintb('c(t)=', latex(c))

\[\displaystyle \boxed{c(t)=1 + \frac{\left(- \zeta \sin{\left(\omega_{n} t \sqrt{1 - \zeta^{2}} \right)} - \sqrt{1 - \zeta^{2}} \cos{\left(\omega_{n} t \sqrt{1 - \zeta} \sqrt{\zeta + 1} \right)}\right) e^{- \omega_{n} t \zeta}}{\sqrt{1 - \zeta^{2}}}}\]

As \( \zeta = 1 \), \( c(t) \) becomes undfined. Hence, we must use limit operation when \(\zeta = 1\).

cz1 = ratsimp(limit(c, zeta, 1))
mprintb('c_{\\zeta=1}(t)=', latex(cz1))

\[\displaystyle \boxed{c_{\zeta=1}(t)=\left(- \omega_{n} t - 1\right) e^{- \omega_{n} t} + 1}\]

Let us rewrite the response equation, for \( \zeta \geq 0 \) :

\[ \boxed{ c(t) = 1 + \frac{ \left(- \zeta \sin{\left(\omega_{n} t \sqrt{1 - \zeta^{2}} \right)} \theta\left(t\right) - \sqrt{1 - \zeta^{2}} \cos{\left(\omega_{n} t \sqrt{1 - \zeta^{2}} \right)} \theta\left(t\right)\right) e^{- \omega_{n} t \zeta}}{\sqrt{1 - \zeta^{2}}}, \,\, \zeta \neq 1 } \]

\[ \boxed{ c(t) = \left(- \omega_{n} t - 1 \right) e^{- \omega_{n} t} + 1, \,\, \zeta = 1 } \]

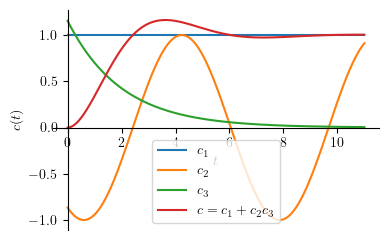

System response is composed by 2 main components:

• Forced response:

  • DC component: \(c_1(t) = 1\)

• Natural response \((c_n)\), which is made by a sinusiodal component divided by an exponential component:

  • Sinusoidal component: \(c_2(t) = - \zeta \sin{\left(\omega_{n} t \sqrt{1 - \zeta^{2}} \right)} \theta\left(t\right) - \sqrt{1 - \zeta^{2}} \cos{\left(\omega_{n} t \sqrt{1 - \zeta^{2}} \right)} \theta\left(t\right)\)

  • Exponential component: \(c_3(t) = e^{\omega_{n} t \zeta}\sqrt{1 - \zeta^{2}}\)

Thus:

\[c(t) = \underbrace{c_1(t)}_{\text{DC}} + \underbrace{c_2(t)c_3(t)}_{\large c_n}\]

zeta_ = 0.5   # set zeta > 0 and zeta != 1
omega_n_ = 1  # set omega_n > 0

c_lst = Add.make_args(c) # separate cn
c1 = c_lst[0]
c2 = numer(c_lst[1])
c3 = 1 / denom(c_lst[1])

p1 = plot(c1.subs(([omega_n, omega_n_],[zeta, zeta_])), (t, 0, 11), size=(4, 2.5), ylabel='$c(t)$', show=False, legend=True)
p2 = plot(c2.subs(([omega_n, omega_n_],[zeta, zeta_])), (t, 0, 11), show=False, legend=True)
p3 = plot(c3.subs(([omega_n, omega_n_],[zeta, zeta_])), (t, 0, 11), show=False, legend=True)
p4 = plot( c.subs(([omega_n, omega_n_],[zeta, zeta_])), (t, 0, 11), show=False, legend=True)

p1.append(p2[0])
p1.append(p3[0])
p1.append(p4[0])

p1[0].label = "$c_1$"
p2[0].label = "$c_2$"
p3[0].label = "$c_3$"
p4[0].label = "$c = c_1 + c_2  c_3$"

p1.show()

Peak time

Peak time is achieved when \(\frac{\mathtt{d}c}{\mathtt{d}t}=0\)

cdot = Eq(simplify(diff(c,t)), 0)
mprint(latex(cdot))

\[\displaystyle \frac{\omega_{n} \left(\zeta^{2} + \sqrt{1 - \zeta} \sqrt{1 - \zeta^{2}} \sqrt{\zeta + 1}\right) e^{- \omega_{n} t \zeta} \sin{\left(\omega_{n} t \sqrt{1 - \zeta^{2}} \right)}}{\sqrt{1 - \zeta^{2}}} = 0\]

tp = solve(cdot, t)
mprintb("t_p=", latex(tp))

\[\displaystyle \boxed{t_p=\left[ \frac{\pi}{\omega_{n} \sqrt{1 - \zeta^{2}}}\right]}\]

For our example, let us apply the previous numerical values to \(\omega_n\) and \(\zeta\).

tp[0].subs(([omega_n, omega_n_],[zeta, zeta_])).evalf()

\[\displaystyle 3.62759872846844\]

Maximum Overshoot

Maximum overshot happens at \(c(t_p)\).

Mp = simplify(c.subs(t, tp[0])) - 1
mprintb("M_p= \\Large ", latex(Mp))

\[\displaystyle \boxed{M_p= \Large e^{- \frac{\pi \zeta}{\sqrt{1 - \zeta^{2}}}}}\]

For our example, let us apply the previous numerical values to \(\omega_n\) and \(\zeta\).

Mp.subs(([omega_n, omega_n_],[zeta, zeta_])).evalf()

\[\displaystyle 0.16303353482158\]

Settling Time

Settling time happens when the output reaches a certain accuracy limit from the steady state output.

Let us take a look only at \(c_2(t)\) and \(c_3(t)\)

mprint("c_2(t)=", latex(c2))
mprint("c_3(t)=", latex(c3))

\[\displaystyle c_2(t)=- \zeta \sin{\left(\omega_{n} t \sqrt{1 - \zeta^{2}} \right)} - \sqrt{1 - \zeta^{2}} \cos{\left(\omega_{n} t \sqrt{1 - \zeta} \sqrt{\zeta + 1} \right)}\]

\[\displaystyle c_3(t)=\frac{e^{- \omega_{n} t \zeta}}{\sqrt{1 - \zeta^{2}}}\]

tspan = (t, 0, 11)

p1 = plot((c-1).subs(([omega_n, omega_n_],[zeta, zeta_])), tspan, size=(6, 4), ylabel='$c(t)$', show=False, legend=True)
p2 = plot(   c3.subs(([omega_n, omega_n_],[zeta, zeta_])), tspan, show=False, legend=True)
p3 = plot(  -c3.subs(([omega_n, omega_n_],[zeta, zeta_])), tspan, show=False, legend=True)

p1.append(p2[0])
p1.append(p3[0])

p1[0].label = "$c(t)-1$"
p2[0].label = "$c_3(t)$"
p3[0].label = "$-c_3(t)$"

p1.show()

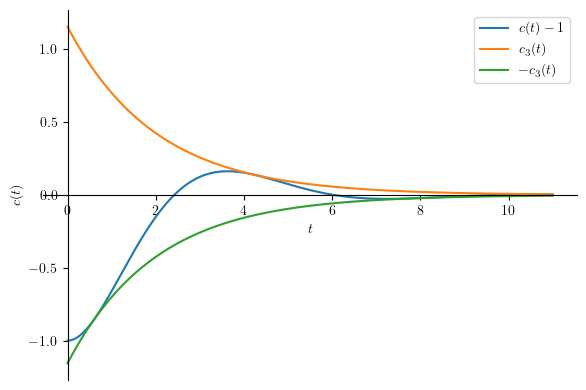

Notice that \(c_3(t)\) is the envelope of the \(c1(t)-1\).

2-percent settling time

ts = solve(Eq(c3, 0.02) , t)
ts2 = ts[0]
mprintb('t_{s2} =', latex(ts))

\[\displaystyle \boxed{t_{s2} =\left[ \frac{3.91202300542815 - 0.5 \log{\left(1.0 - \zeta^{2} \right)}}{\omega_{n} \zeta}\right]}\]

For our example, let us apply the previous numerical values to \(\omega_n\) and \(\zeta\).

ts2_ = ts2.subs(([omega_n, omega_n_],[zeta, zeta_]))
ts2_

\[\displaystyle 8.11172808330807\]

5-percent settling time

ts = solve(Eq(c3, 0.05) , t)
ts5 = ts[0]
mprintb('t_{s5} =', latex(ts))

\[\displaystyle \boxed{t_{s5} =\left[ \frac{2.99573227355399 - 0.5 \log{\left(1.0 - \zeta^{2} \right)}}{\omega_{n} \zeta}\right]}\]

For our example, let us apply the previous numerical values to \(\omega_n\) and \(\zeta\).

ts5_ = ts5.subs(([omega_n, omega_n_],[zeta, zeta_]))
ts5_

\[\displaystyle 6.27914661955976\]

Rise time

Rise time happens when \(c(t_r) = 1\).

tr = solve(Eq(c-1, 0), t)
mprintb('t_r = ', latex(tr))

\[\displaystyle \boxed{t_r = \left[ \frac{2 \operatorname{atan}{\left(\frac{\sqrt{\zeta + 1}}{\sqrt{1 - \zeta}} \right)}}{\omega_{n} \sqrt{1 - \zeta^{2}}}, \ - \frac{2 \operatorname{atan}{\left(\frac{\sqrt{1 - \zeta}}{\sqrt{\zeta + 1}} \right)}}{\omega_{n} \sqrt{1 - \zeta^{2}}}\right]}\]

We take the first solution since \(t_r > 0\)

For our example, let us apply the previous numerical values to \(\omega_n\) and \(\zeta\).

tr[0].subs(([omega_n, omega_n_],[zeta, zeta_]))

\[\displaystyle 2.41839915231229\]

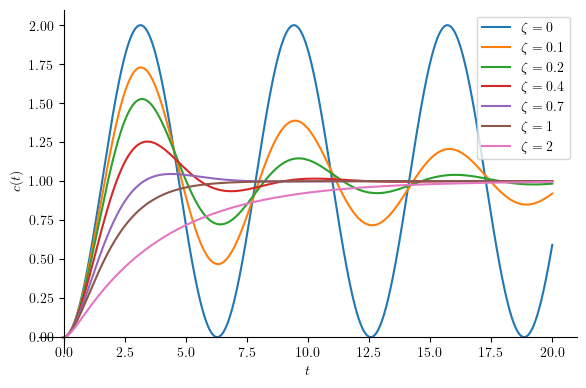

The effect of damping ratio

If we consider only the system’s natural response:

cn = c2 * c3
mprint("c_n=", latex(cn))

\[\displaystyle c_n=\frac{\left(- \zeta \sin{\left(\omega_{n} t \sqrt{1 - \zeta^{2}} \right)} - \sqrt{1 - \zeta^{2}} \cos{\left(\omega_{n} t \sqrt{1 - \zeta} \sqrt{\zeta + 1} \right)}\right) e^{- \omega_{n} t \zeta}}{\sqrt{1 - \zeta^{2}}}\]

We can easily conclude that the damping ratio:

• changes system’s natural frequency

• changes system’s transient behaviour

The first point is quite straight forward. Thus, we will explore more on the second point.

tspan = (t, 0, 20)
zetas = [0, 0.1, 0.2, 0.4, 0.7, 1, 2]

p1 = plot(c.subs(([omega_n, omega_n_],[zeta, zetas[0]])), tspan, size=(6, 4), ylabel='$c(t)$', show=False, legend=True)
p1[0].label = "$\\zeta = " + str(zetas[0]) + "$"

for k in range(1, len(zetas)):
    if zetas[k] != 1:
        p2 = plot(c.subs(([omega_n, omega_n_],[zeta, zetas[k]])), tspan, show=False, legend=True)
    else:
        p2 = plot(cz1.subs(omega_n, omega_n_), tspan, show=False, legend=True)

    p1.append(p2[0])
    p2[0].label = "$\\zeta = " + str(zetas[k]) + "$"


p1.show()

Summary

from pandas import DataFrame
from IPython.display import Markdown

def makelatex(args):
    return ["$\\Large {}$".format(latex(a)) for a in args]

descs = ["Rise time",
         "Peak time",
         "Maximum overshoot",
         "2-percent settling time",
         "5-percent settling time"]

vals  = [tr[0], tp, Mp, ts2, ts5]

dic = {'Parameters': descs,
       'Formulas': makelatex(vals)}

df = DataFrame(dic)
Markdown(df.to_markdown(index=False))

Parameters	Formulas
Rise time	\(\Large \frac{2 \operatorname{atan}{\left(\frac{\sqrt{\zeta + 1}}{\sqrt{1 - \zeta}} \right)}}{\omega_{n} \sqrt{1 - \zeta^{2}}}\)
Peak time	\(\Large \left[ \frac{\pi}{\omega_{n} \sqrt{1 - \zeta^{2}}}\right]\)
Maximum overshoot	\(\Large e^{- \frac{\pi \zeta}{\sqrt{1 - \zeta^{2}}}}\)
2-percent settling time	\(\Large \frac{3.91202300542815 - 0.5 \log{\left(1.0 - \zeta^{2} \right)}}{\omega_{n} \zeta}\)
5-percent settling time	\(\Large \frac{2.99573227355399 - 0.5 \log{\left(1.0 - \zeta^{2} \right)}}{\omega_{n} \zeta}\)
