SD-Card–Backed LeNet-5 Inference

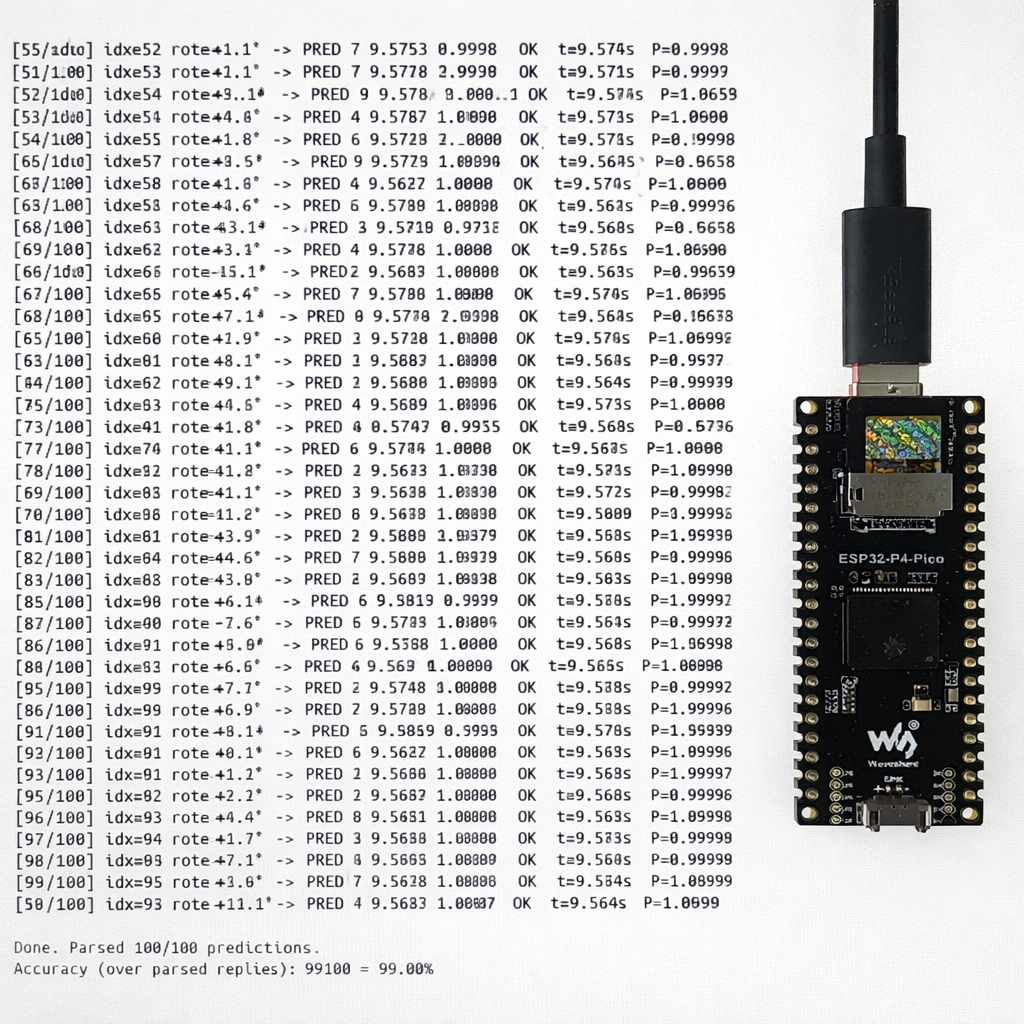

This section evaluates a LeNet-5–style inference pipeline in which weights, biases, and intermediate activations are streamed to and from an SD card, rather than retained fully in RAM. The target platform is an ESP32-P4-Pico, interfacing with external storage via 1-bit SDIO.
| Step | Op / Layer | Input (where) | Output (where) | Parameters (where) | Notes |
|---|---|---|---|---|---|
| 1 | Conv1 + Pool | GRID (variable) |
out1.txt (file) |
w01.txt, b01.txt (files) |
noodle_conv_float("in1.txt", 1, 6, "out1.txt", 28, cnn1, pool, ...) |
| 2 | Conv2 + Pool | out1.txt (file) |
out2.txt (file) |
w02.txt, b02.txt (files) |
noodle_conv_float("out1.txt", 6, 16, "out2.txt", V, cnn2, pool, ...) |
| 3 | Flatten (CHW file → HWC-flat RAM) | out2.txt (file) |
BUFFER1 (variable) |
— | V = noodle_flat("out2.txt", BUFFER1, V, 16) |
| 4 | FC1 (RAM → file) | BUFFER1 (variable) |
out3.txt (file) |
w03.txt, b03.txt (files) |
V = noodle_fcn(BUFFER1, V, 120, "out3.txt", fcn1, ...) |
| 5 | FC2 (file → file) | out3.txt (file) |
out4.txt (file) |
w04.txt, b04.txt (files) |
V = noodle_fcn("out3.txt", V, 84, "out4.txt", fcn2, ...) |
| 6 | FC3 + Softmax (file → RAM) | out4.txt (file) |
BUFFER2 (variable) |
w05.txt, b05.txt (files) |
V = noodle_fcn("out4.txt", V, 10, BUFFER2, fcn3, ...) |
